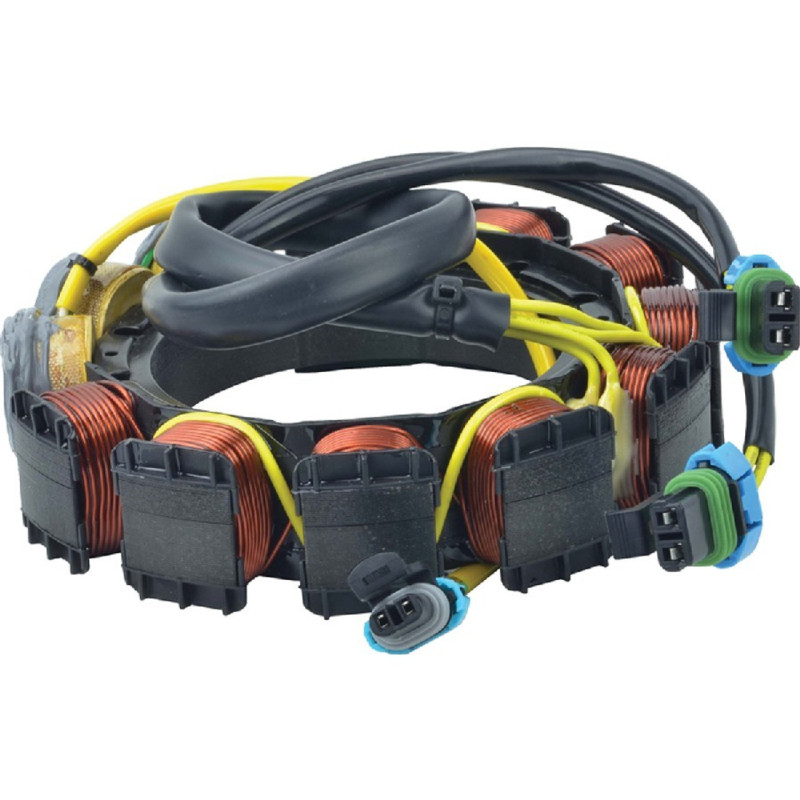

340-22061 Stator for Mercury Marine Various 398-858404A3

340-22061 Stator for Mercury Marine Various 398-858404A3

  • Item #: 340-22061
  • Stock: In Stock

OVERVIEW

Milton Auto Electric Stator Coils
Milton Auto Electric’s high performance stator coils keep your battery fully charged and ready to power all electrical functions. Precision engineering delivers optimal charging capabilities to maximize generation of electrical power. The stator coil creates alternating current (AC), which goes to the rectifier/regulator for conversion into direct current (DC). A new Milton Auto Electric stator coil will restore effective electrical generation when it’s time to replace an older one due to age.

Quality Craftmanship and Materials Add Up to a Better Stator Coil
At first glance, a stator coil seems like a simple component with an iron core and copper wire, but the quality of craftsmanship and materials do make a difference in both performance and service life. Milton Auto Electric works directly with factories to make sure only premium materials and uncompromising craftsmanship go into every stator coil. Our stator coils feature a quality grade of wire for a good current carrying capacity, which reduces overall temperatures as current flows through the component. The coating on the winding also resists heat to reduce chances of becoming compromised. The wire is wound to the highest standards of fine craftsmanship for better performance.

40 Years of Satisfied Customers
We’ve been in the business of supplying quality electrical components for over 40 years. Our long history has taught us that you only keep customers satisfied by supplying quality products and outstanding service.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric proudly stands behind the quality of our products with our total-confidence 1-year warranty. Yes, you have a full year to make sure your stator coil meets your expectations.

Item Number: 340-22061

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Stator Coil
Voltage 12
Dimension 12 Post Stator Coil, ID 97.8mm, OD 170.2mm, Width 25.4mm, (12) 5
Fits Used on Mercury Marine 135, 140, 150, 175, 200, 240HP 2000-07
Dimension 12 Post Stator Coil, ID 97.8mm, OD 170.2mm, Width 25.4mm, (12) 5
Dimension 12 Post Stator Coil, ID 97.8mm, OD 170.2mm, Width 25.4mm, (12) 5
Dimension 12 Post Stator Coil, ID 97.8mm, OD 170.2mm, Width 25.4mm, (12) 5
Dimension 12 Post Stator Coil, ID 97.8mm, OD 170.2mm, Width 25.4mm, (12) 5

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
MERCURY MARINE Engines - 2-Stroke Carb - By SN 135.0HP / V-135 - SN 0G960500 Thru 0T178499 All 135.0HP
MERCURY MARINE Engines - 2-Stroke Carb - By SN 140.0HP / Jet - SN 0G960500 Thru 0T178499 All 140.0HP, Jet
MERCURY MARINE Engines - 2-Stroke Carb - By SN 140.0HP / V-140 / Int'l - SN 0T178500 Thru 1B226999 All 140.0HP
MERCURY MARINE Engines - 2-Stroke Carb - By SN 150.0HP / V-150 - SN 0G960500 Thru 1B226999 All 150.0HP
MERCURY MARINE Engines - 2-Stroke Carb - By SN 200.0HP / V-200 - SN 0G960500 Thru 1B226999 All 200.0HP
MERCURY MARINE Engines - 2-Stroke Carb - By SN XR-6 Magnum III - SN 0G760300 Thru 0G960499 All 2-Stroke
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 240 EFI Jet Drive (Powerhead) - SN 0E384500 Thru 0E406399 All All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 240 EFI Jet Drive (Pump) - SN 0E379931 Thru 0E406399 All All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 240 EFI M2 Jet Drive (Powerhead) - SN 0E373939 Thru 0E384499 All All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 240 EFI M2 Jet Drive (Powerhead) - SN 0E384500 Thru 0E406399 All All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 240 EFI M2 Jet Drive (Pump) - SN 0E370718 Thru 0E379930 All All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 240 EFI M2 Jet Drive (Pump) - SN 0E379931 Thru 0E406399 All All

REPLACES THESE PART NUMBERS

ARROWHEAD 340-22061
J&N Electrical Products 340-22061
MERCURY MARINE 398-858404A3, 398-858404A4, 398-858404T3, 398-858404T4, 858404T3, 858404T4
