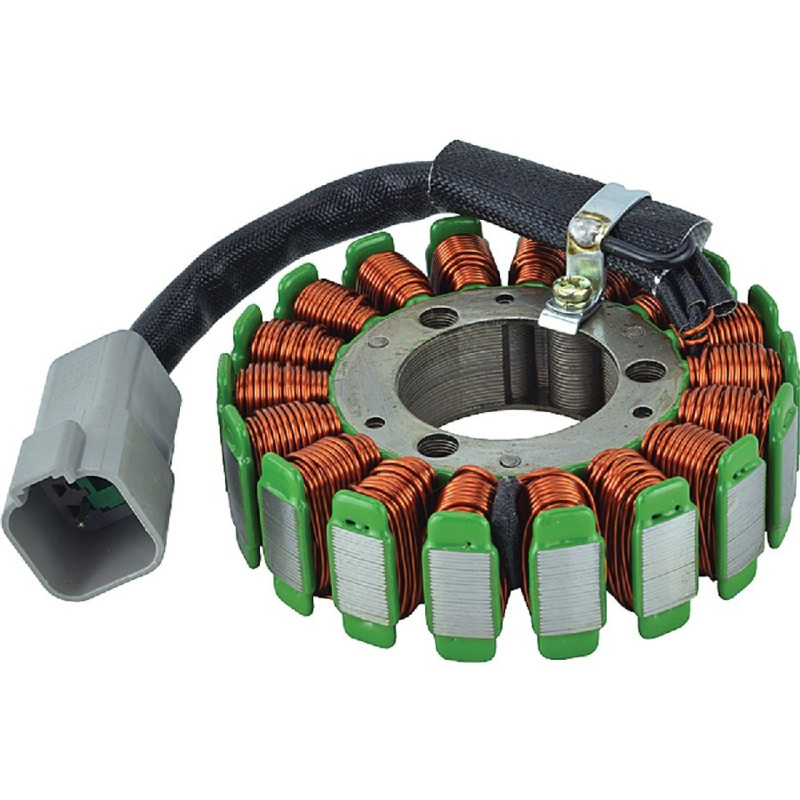

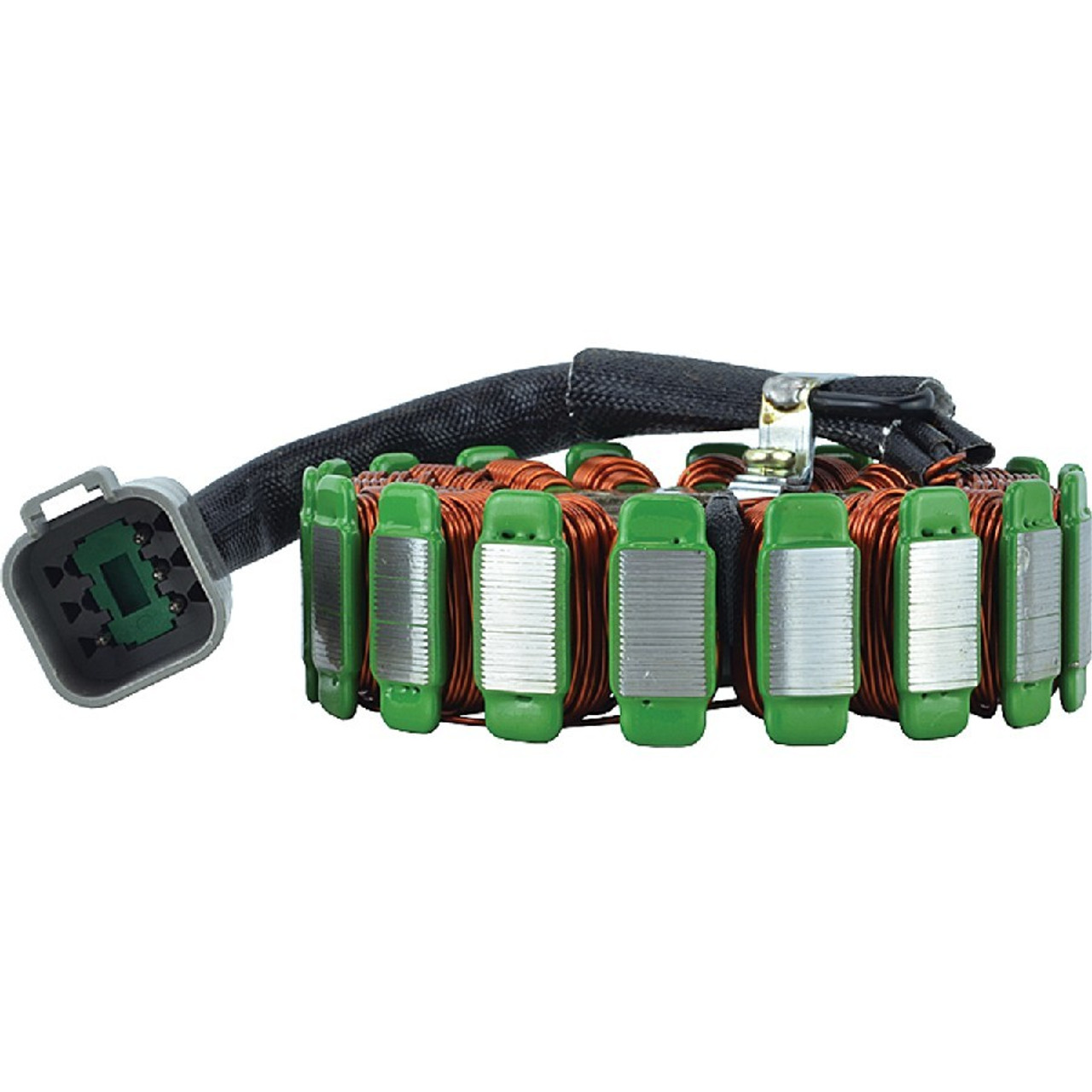

Marine Stator Coil for Sea-Doo Challenger 96-99, GSX 96 97, GSX LTD 98 99
Marine Stator Coil for Sea-Doo Challenger 96-99, GSX 96 97, GSX LTD 98 99

Marine Stator Coil for Sea-Doo Challenger 96-99, GSX 96 97, GSX LTD 98 99

  • Item #: 340-22032
  • Stock: In Stock

OVERVIEW

Milton Auto Electric Stator Coils
Milton Auto Electric’s high performance stator coils keep your battery fully charged and ready to power all electrical functions. Precision engineering delivers optimal charging capabilities to maximize generation of electrical power. The stator coil creates alternating current (AC), which goes to the rectifier/regulator for conversion into direct current (DC). A new Milton Auto Electric stator coil will restore effective electrical generation when it’s time to replace an older one due to age.

Quality Craftmanship and Materials Add Up to a Better Stator Coil
At first glance, a stator coil seems like a simple component with an iron core and copper wire, but the quality of craftsmanship and materials do make a difference in both performance and service life. Milton Auto Electric works directly with factories to make sure only premium materials and uncompromising craftsmanship go into every stator coil. Our stator coils feature a quality grade of wire for a good current carrying capacity, which reduces overall temperatures as current flows through the component. The coating on the winding also resists heat to reduce chances of becoming compromised. The wire is wound to the highest standards of fine craftsmanship for better performance.

40 Years of Satisfied Customers
We’ve been in the business of supplying quality electrical components for over 40 years. Our long history has taught us that you only keep customers satisfied by supplying quality products and outstanding service.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric proudly stands behind the quality of our products with our total-confidence 1-year warranty. Yes, you have a full year to make sure your stator coil meets your expectations.

Item Number: 340-22032

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Stator Coil
Voltage 12
Dimension 18 Posts, 35mm ID, 92.9mm OD, 27.7mm Width, (3) 6.0mm Mounting H
Fits Sea-Doo PWC 1996-03 Sea-Doo Sportboats 1996-03 Used On: 1996-97
Dimension 18 Posts, 35mm ID, 92.9mm OD, 27.7mm Width, (3) 6.0mm Mounting H
Fits Sea-Doo PWC 1996-03 Sea-Doo Sportboats 1996-03 Used On: 1996-97
Dimension 18 Posts, 35mm ID, 92.9mm OD, 27.7mm Width, (3) 6.0mm Mounting H
Fits Sea-Doo PWC 1996-03 Sea-Doo Sportboats 1996-03 Used On: 1996-97
Dimension 18 Posts, 35mm ID, 92.9mm OD, 27.7mm Width, (3) 6.0mm Mounting H
Fits Sea-Doo PWC 1996-03 Sea-Doo Sportboats 1996-03 Used On: 1996-97
Dimension 18 Posts, 35mm ID, 92.9mm OD, 27.7mm Width, (3) 6.0mm Mounting H
Fits Sea-Doo PWC 1996-03 Sea-Doo Sportboats 1996-03 Used On: 1996-97

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
SEA-DOO PWC GSX LTD 1998 951cc
SEA-DOO PWC GSX LTD 1999 951cc
SEA-DOO PWC GSX 1996 782cc
SEA-DOO PWC GSX 1997 782cc
SEA-DOO PWC GTX 1996 782cc
SEA-DOO PWC GTX 1997 782cc
SEA-DOO PWC GTX 1998 951cc
SEA-DOO PWC GTX 1999 951cc
SEA-DOO PWC GTX 2000 951cc
SEA-DOO PWC GTX 2001 951cc
SEA-DOO PWC GTX 2002 951cc
SEA-DOO PWC LRV 2000 951cc
SEA-DOO PWC LRV 2001 951cc
SEA-DOO PWC RX X 2001 951cc
SEA-DOO PWC RX 2000 951cc
SEA-DOO PWC RX 2001 951cc
SEA-DOO PWC RX 2002 951cc
SEA-DOO PWC SPX 1997 782cc
SEA-DOO PWC SPX 1998 782cc
SEA-DOO PWC SPX 1999 782cc
SEA-DOO PWC XP 1996 782cc
SEA-DOO PWC XP 1997 782cc
SEA-DOO PWC XP 1998 951cc
SEA-DOO PWC XP 1999 951cc
SEA-DOO PWC XP 2000 951cc
SEA-DOO PWC XP 2001 951cc
SEA-DOO PWC XP 2002 951cc
SEA-DOO Sportboats Challenger 1996 All
SEA-DOO Sportboats Challenger 1997 All
SEA-DOO Sportboats Challenger 1998 All
SEA-DOO Sportboats Challenger 1999 All
SEA-DOO Sportboats Speedster 1998 All
SEA-DOO Sportboats Speedster 1999 All
SEA-DOO Sportboats Sportster 2000 All
SEA-DOO Sportboats Sportster 2001 All
SEA-DOO Sportboats Sportster 2002 All
SEA-DOO Sportboats Sportster 2003 All
SEA-DOO PWC CHALLENGER 1996 NA
SEA-DOO PWC CHALLENGER 1997 NA
SEA-DOO PWC CHALLENGER 1998 NA
SEA-DOO PWC CHALLENGER 1999 NA
SEA-DOO PWC GSX 1996 NA
SEA-DOO PWC GSX 1997 NA
SEA-DOO PWC GSX LTD 1998 NA
SEA-DOO PWC GSX LTD 1999 NA
SEA-DOO PWC GTX 1996 NA
SEA-DOO PWC GTX 1997 NA
SEA-DOO PWC GTX 1998 NA
SEA-DOO PWC GTX 1999 NA
SEA-DOO PWC GTX 2000 NA
SEA-DOO PWC GTX 2001 NA
SEA-DOO PWC GTX 2002 NA
SEA-DOO PWC LRV 2000 NA
SEA-DOO PWC LRV 2001 NA
SEA-DOO PWC RX 2000 NA
SEA-DOO PWC RX 2001 NA
SEA-DOO PWC RX 2002 NA
SEA-DOO PWC RX X 2001 NA
SEA-DOO PWC SPEEDSTER 1998 NA
SEA-DOO PWC SPEEDSTER 1999 NA
SEA-DOO PWC SPORTSTER 2000 NA
SEA-DOO PWC SPORTSTER 2001 NA
SEA-DOO PWC SPORTSTER 2002 NA
SEA-DOO PWC SPORTSTER 2003 NA
SEA-DOO PWC SPX 1997 NA
SEA-DOO PWC SPX 1998 NA
SEA-DOO PWC SPX 1999 NA
SEA-DOO PWC XP 1996 NA
SEA-DOO PWC XP 1997 NA
SEA-DOO PWC XP 1998 NA
SEA-DOO PWC XP 1999 NA
SEA-DOO PWC XP 2000 NA
SEA-DOO PWC XP 2001 NA
SEA-DOO PWC XP 2002 NA

REPLACES THESE PART NUMBERS

ARROWHEAD 340-22032
BOMBARDIER 290-886-588, 420-886-588
J&N Electrical Products 340-22032
