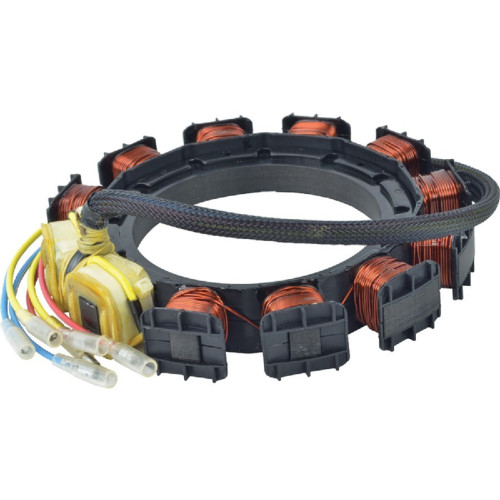

Stator for Mercury Marine Various 398-818535A10 340-22062

Stator for Mercury Marine Various 398-818535A10 340-22062

  • Item #: 340-22062
  • Stock: In Stock

OVERVIEW

Milton Auto Electric Stator Coils
Milton Auto Electric’s high performance stator coils keep your battery fully charged and ready to power all electrical functions. Precision engineering delivers optimal charging capabilities to maximize generation of electrical power. The stator coil creates alternating current (AC), which goes to the rectifier/regulator for conversion into direct current (DC). A new Milton Auto Electric stator coil will restore effective electrical generation when it’s time to replace an older one due to age.

Quality Craftmanship and Materials Add Up to a Better Stator Coil
At first glance, a stator coil seems like a simple component with an iron core and copper wire, but the quality of craftsmanship and materials do make a difference in both performance and service life. Milton Auto Electric works directly with factories to make sure only premium materials and uncompromising craftsmanship go into every stator coil. Our stator coils feature a quality grade of wire for a good current carrying capacity, which reduces overall temperatures as current flows through the component. The coating on the winding also resists heat to reduce chances of becoming compromised. The wire is wound to the highest standards of fine craftsmanship for better performance.

40 Years of Satisfied Customers
We’ve been in the business of supplying quality electrical components for over 40 years. Our long history has taught us that you only keep customers satisfied by supplying quality products and outstanding service.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric proudly stands behind the quality of our products with our total-confidence 1-year warranty. Yes, you have a full year to make sure your stator coil meets your expectations.

Item Number: 340-22062

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Stator Coil
Voltage 12
Dimension 12 Post, 97.9mm ID, 170.9mm OD, 28.4mm Width, (12) 5.4mm ID Unth
Fits Used on Mercury 70, 75, 90HP – 3cyl Engines 1987-96 Mercury 40,
Dimension 12 Post, 97.9mm ID, 170.9mm OD, 28.4mm Width, (12) 5.4mm ID Unth
Fits Used on Mercury 70, 75, 90HP – 3cyl Engines 1987-96 Mercury 40,
Dimension 12 Post, 97.9mm ID, 170.9mm OD, 28.4mm Width, (12) 5.4mm ID Unth
Fits Used on Mercury 70, 75, 90HP – 3cyl Engines 1987-96 Mercury 40,
Dimension 12 Post, 97.9mm ID, 170.9mm OD, 28.4mm Width, (12) 5.4mm ID Unth
Fits Used on Mercury 70, 75, 90HP – 3cyl Engines 1987-96 Mercury 40,
Dimension 12 Post, 97.9mm ID, 170.9mm OD, 28.4mm Width, (12) 5.4mm ID Unth
Fits Used on Mercury 70, 75, 90HP – 3cyl Engines 1987-96 Mercury 40,

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
MERCURY MARINE Engines - 2-Stroke Carb - By SN 100.0HP / 4cyl - SN 0A722297 Thru 0D283221 All 100.0HP, 4 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 115.0HP / 4cyl - SN 0C100000 Thru 0D283221 All 115.0HP, 4 Cylinder
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 120 Jet Drive - SN 0E080400 Thru 0E145579 1995 All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 120 Powerhead - SN 0E095088 Thru 0E141088 1995 All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 90 Jet Drive - SN 0E021000 Thru 0E036999 1993 All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 90 Powerhead (Non-Oil Injected) - SN 0E023150 Thru 0E033710 1993 All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 90 Powerhead (Non-Oil Injected) - SN 0E033711 Thru 0E066619 1994 All
MERCURY MARINE Engines - Jet Drive - SportJet - By SN 90 Powerhead (Oil Injected) - SN 0E066620 Thru 0E095087 1994 All

REPLACES THESE PART NUMBERS

ARROWHEAD 340-22062
J&N Electrical Products 340-22062
MERCURY MARINE 398-818535A10, 398-818535A13, 398-818535A14, 398-818535A3, 398-818535A5, 398-818535A8, 398-818535A9, 398-8778A21, 398-8778A22, 398-8778A23, 398-8778A24, 398-8778A25, 398-8778A26, 398-8778A27, 398-8778A28, 398-8778A29, 818535A14, 8778A23, 8778A26, 8778A29
SIERRA MARINE 18-5873
TEMCO TM-ST163
