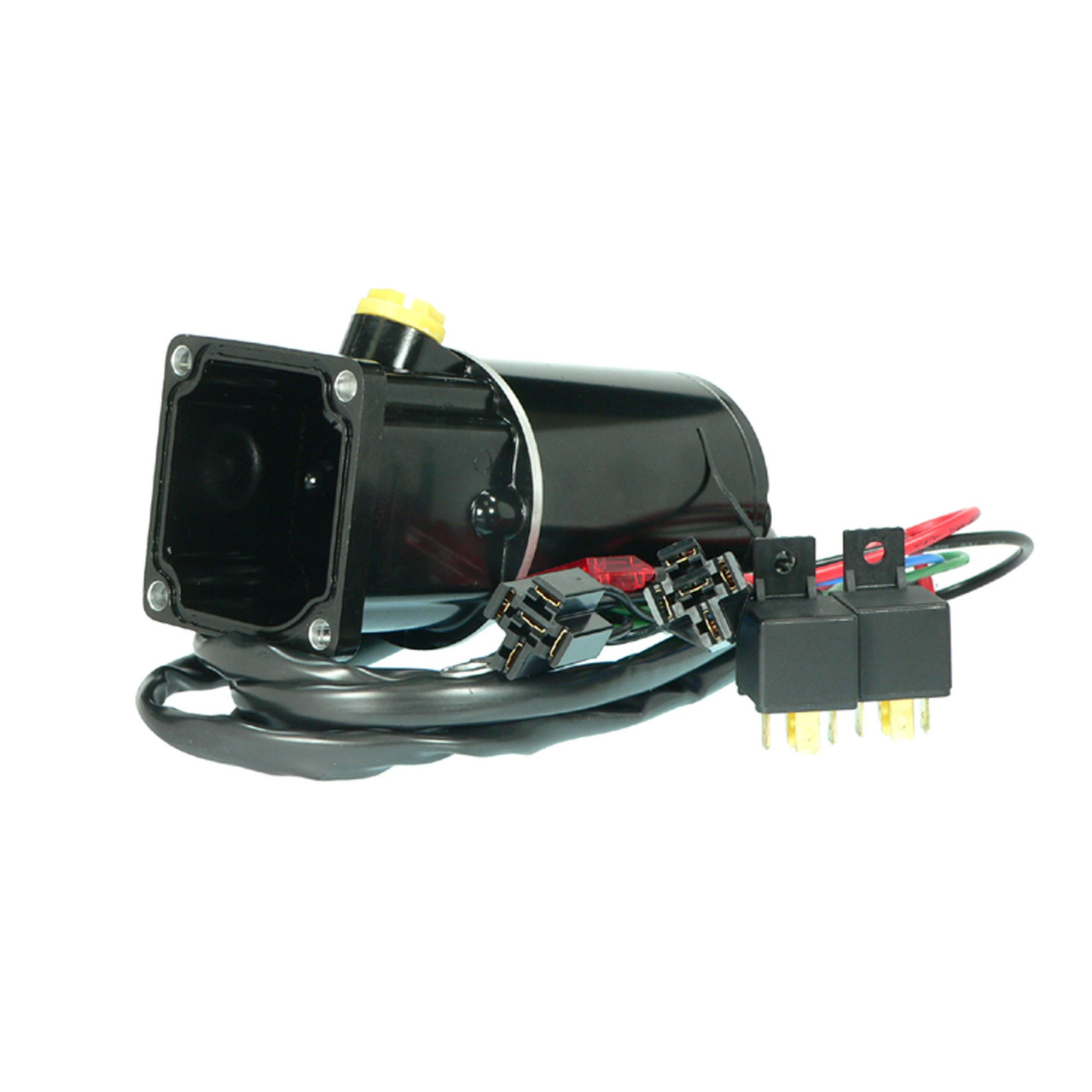

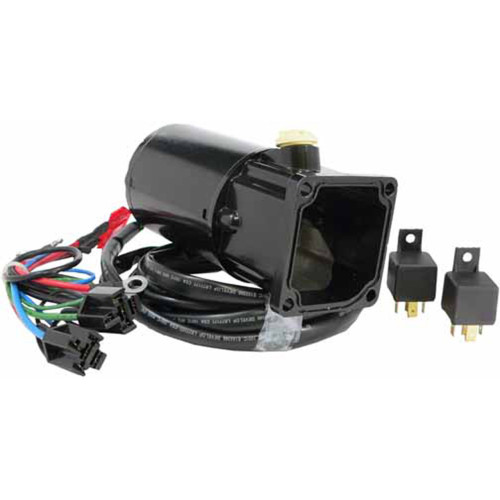

Tilt & Trim Motor for Mercury Marine, Force 90ELPT, 90EXLPT TRM0035, 430-22037 TRM0035
Tilt & Trim Motor for Mercury Marine, Force 90ELPT, 90EXLPT TRM0035, 430-22037 TRM0035  Tilt & Trim Motor for Mercury Marine, Force 90ELPT, 90EXLPT TRM0035, 430-22037 TRM0035

Tilt & Trim Motor for Mercury Marine, Force 90ELPT, 90EXLPT TRM0035, 430-22037 TRM0035

  • Item #: 430-22037
  • Stock: In Stock

OVERVIEW

Tilt Trim Motors
Owners of Mercury and Force motors appreciate the flawless and precise operation of Milton Auto Electric tilt trim motors that match OEM performance. Milton Auto Electric tilt trim motors smoothly raise and lower boat engines to the perfect angle for better on-the-water performance and fuel economy. They can also lift your engine upward to avoid damage when loading your boat on a trailer. Tilt trim motors make your days out on the water more enjoyable by giving you more control over how your boat performs. Our tilt trim motors are 12-volt direct current, reversing-style motors. We test our tilt trim motors on a professional test bench to ensure dependable performance.

Top Reasons to Choose Milton Auto Electric Tilt Trim Motors

  • Marine grade that meets SAE J1171 and ISO8847
  • Recommended as a Mercury tilt trim motor replacement
  • Meets the fitment requirements of Mercury power and tilt trim units
  • Designed to meet or exceed original (OEM) equipment specifications
  • High quality brushes, bushings and armatures for longer service life
  • Includes harness, relays and heavy-duty valves where applicable

How Tilt Trim Motors Work
When it’s time to install a tilt trim motor, you’ll notice one green and one blue wire on most models. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. Motors built for older-style systems may also have a black wire that serves as a ground. Newer style systems do not have this third wire.

Money-Saving Bottom Line Difference
Our tilt trim motors are typically priced lower than OEM counterparts. Because there is no middleman, we can offer these exceptional-quality tilt trim motors at low factory direct prices.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your motor meets your expectations.

Item Number: 430-22037

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Tilt & Trim Motor
Voltage 12
Dimension Replacement Unit:, OD: 3.071in / 78mm, Length: 6.299in / 160mm,
Fits Mercury, Mariner & Force
Dimension Replacement Unit:, OD: 3.071in / 78mm, Length: 6.299in / 160mm,
Dimension Replacement Unit:, OD: 3.071in / 78mm, Length: 6.299in / 160mm,
Dimension Replacement Unit:, OD: 3.071in / 78mm, Length: 6.299in / 160mm,
Dimension Replacement Unit:, OD: 3.071in / 78mm, Length: 6.299in / 160mm,

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
FORCE Engines - Marine Outboard 120ELPT 1995 120HP
FORCE Engines - Marine Outboard 120ELPT 1996 120HP
FORCE Engines - Marine Outboard 120ELPT 1997 120HP
FORCE Engines - Marine Outboard 120EXLPT 1995 120HP
FORCE Engines - Marine Outboard 120EXLPT 1996 120HP
FORCE Engines - Marine Outboard 120EXLPT 1997 120HP
FORCE Engines - Marine Outboard 90EL 1995 90HP
FORCE Engines - Marine Outboard 90ELPT 1995 90HP
FORCE Engines - Marine Outboard 90ELPT 1996 90HP
FORCE Engines - Marine Outboard 90ELPT 1997 90HP
FORCE Engines - Marine Outboard 90EXLPT 1995 90HP
FORCE Engines - Marine Outboard 90EXLPT 1996 90HP
FORCE Engines - Marine Outboard 90EXLPT 1997 90HP
MERCURY MARINE Engines - 2-Stroke Carb - By SN 100.0HP / 4cyl - SN 0D283222 Thru 0G760299 All 100.0HP, 4 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 115.0HP / 4cyl - SN 0C100000 Thru 0D283221 All 115.0HP, 4 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 115.0HP / 4cyl - SN 0D283222 Thru 0G760299 All 115.0HP, 4 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 125.0HP / 4cyl - SN 0D283222 Thru 0G760299 All 125.0HP, 4 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 65.0HP / Jet - SN 0D283222 Thru 0G760299 All 65.0HP, Jet
MERCURY MARINE Engines - 2-Stroke Carb - By SN 75.0HP / 3cyl - SN 0C222000 Thru 0D283221 All 75.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 75.0HP / 3cyl - SN 0D283222 Thru 0G760299 All 75.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 80.0HP / Jet - SN 0D283222 Thru 0G760299 All 80.0HP, Jet
MERCURY MARINE Engines - 2-Stroke Carb - By SN 90.0HP / 3cyl - SN 0C222000 Thru 0D283221 All 90.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 90.0HP / 3cyl - SN 0D283222 Thru 0G760299 All 90.0HP, 3 Cylinder
MERCURY MARINE Tilt AND Trim All Models All Assy 824051
FORCE ENGINE - OUTBOARD ALL MODELS ALL NA
MERCURY ENGINE - OUTBOARD ALL MODELS ALL NA

REPLACES THESE PART NUMBERS

API MARINE PT495NK, PT495NK-3
ARCO MARINE 6274
ARROWHEAD TRM0035
EMP UnitS 4-6784
Force 824051
J&N Electrical Products 430-22037
LESTER 10821
Mercury MARINE 824051
QUICKSILVER 8M6007532
SIERRA MARINE 18-6775 (MOTOR), 18-6784 (KIT)
WAI 10821N
