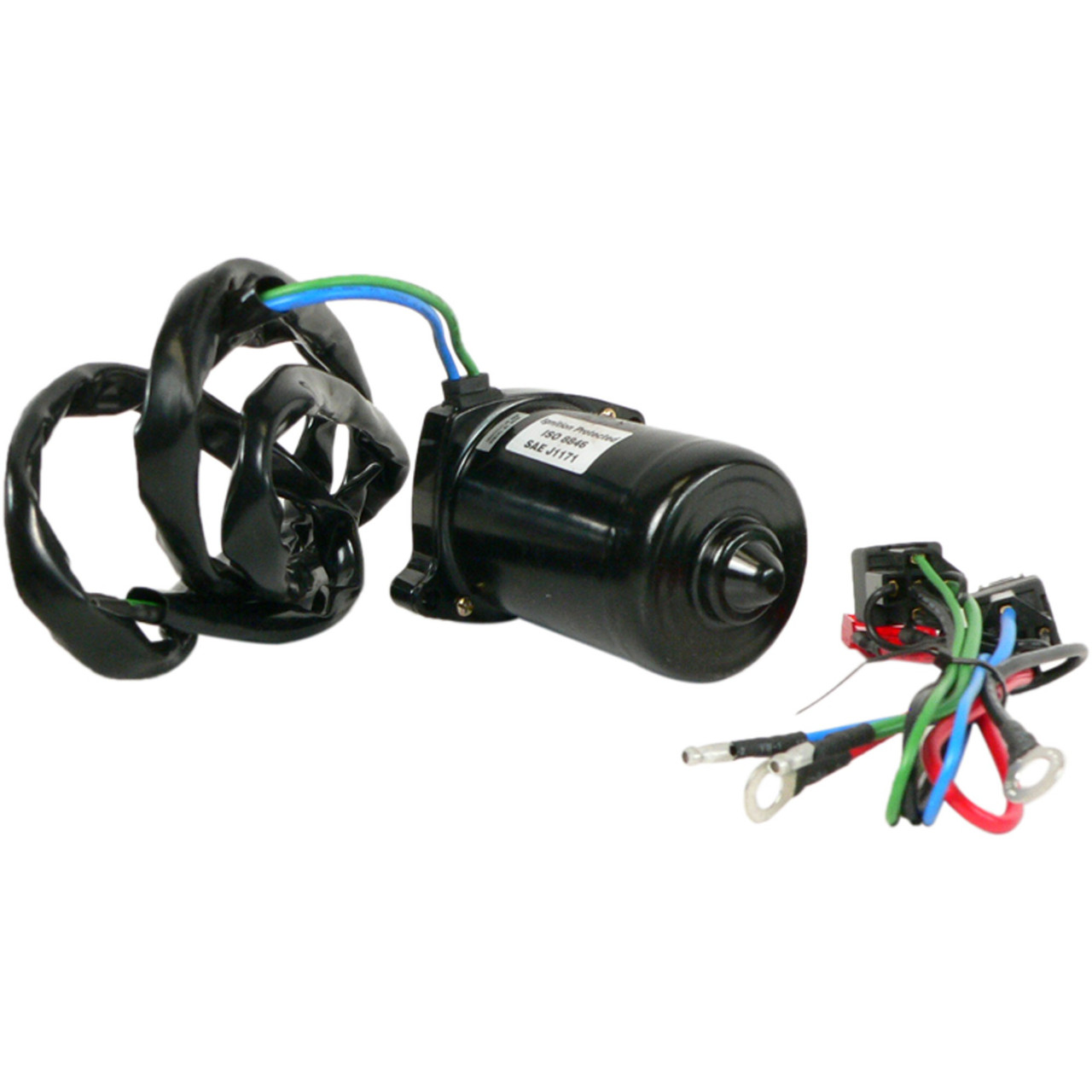

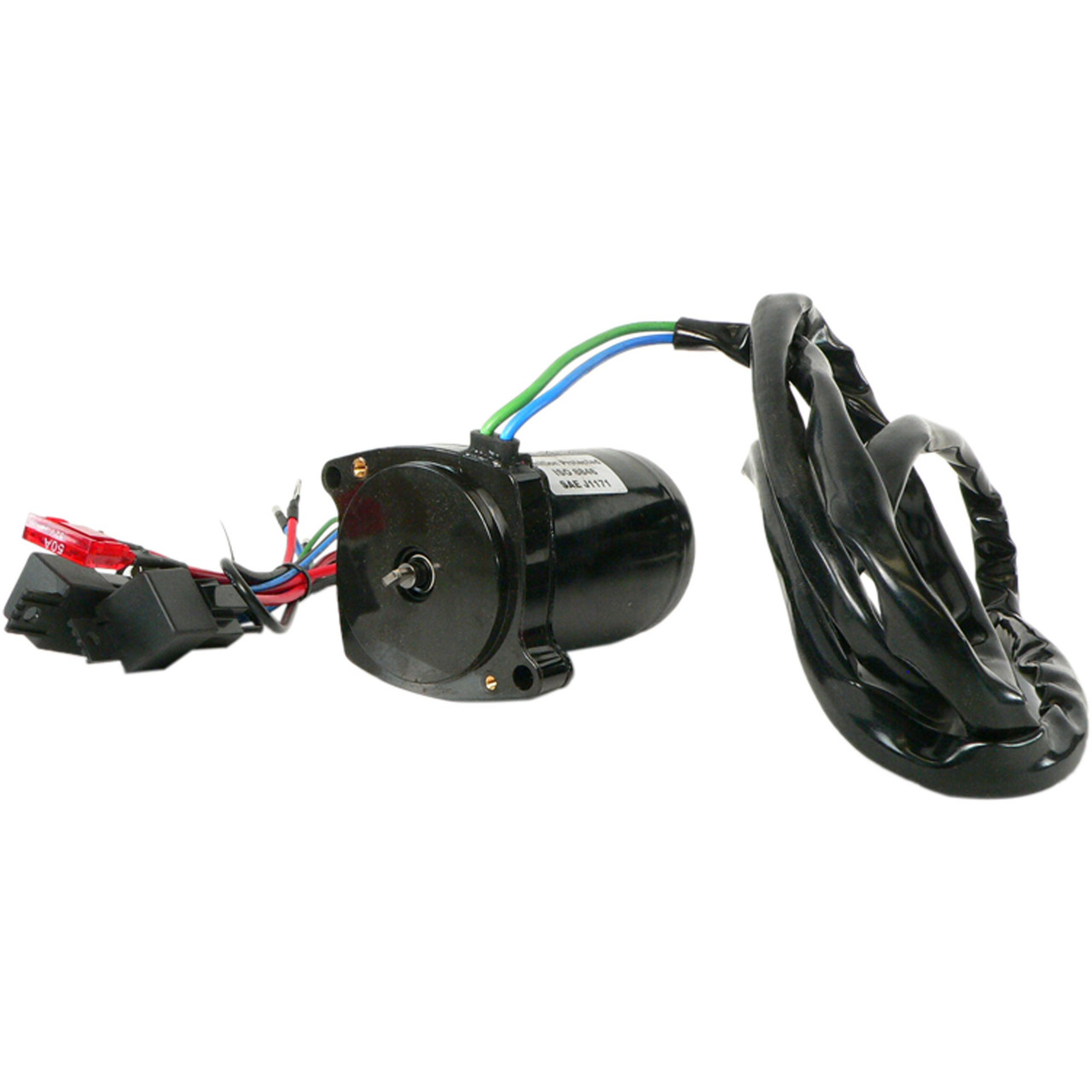

Tilt Trim Motor for Mercury Marine 1993-1995 811628 6279
Tilt Trim Motor for Mercury Marine 1993-1995 811628 6279  Tilt Trim Motor for Mercury Marine 1993-1995 811628 6279  Tilt Trim Motor for Mercury Marine 1993-1995 811628 6279

Tilt Trim Motor for Mercury Marine 1993-1995 811628 6279

  • Item #: 430-20067
  • Stock: In Stock

OVERVIEW

Tilt Trim Motors
Owners of Mercury Marine motors appreciate the flawless and precise operation of Milton Auto Electric tilt trim motors that match OEM performance. Milton Auto Electric tilt trim motors smoothly raise and lower boat engines to the perfect angle for better on-the-water performance and fuel economy. They can also lift your engine upward to avoid damage when loading your boat on a trailer. Tilt trim motors make your days out on the water more enjoyable by giving you more control over how your boat performs. Our tilt trim motors are 12-volt direct current, reversing-style motors. We test our tilt trim motors on a professional test bench to ensure dependable performance.

Top 4 Reasons to Choose Milton Auto Electric Tilt Trim Motors

  • Marine grade that meets SAE J1171 and ISO8847
  • Designed to meet or exceed original (OEM) equipment specifications
  • High quality brushes, bushings and armatures for longer service life
  • Includes harness, relays and heavy-duty valves where applicable

How Tilt Trim Motors Work
When it’s time to install a tilt trim motor, you’ll notice one green and one blue wire on most models. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. Motors built for older-style systems may also have a black wire that serves as a ground. Newer style systems do not have this third wire.

Money-Saving Bottom Line Difference
Our tilt trim motors are typically priced lower than OEM counterparts. Because there is no middleman, we can offer these exceptional-quality tilt trim motors at low factory direct prices.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your motor meets your expectations.

Item Number: 430-20067

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Tilt & Trim Motor
Voltage 12
Rotation RE
Dimension Replacement Unit:, OD: 2.854in / 72.5mm, Shaft OD: 0.315in / 8mm
Fits TILT MOTOR For Mercury / Mariner 1993-95
Dimension Replacement Unit:, OD: 2.854in / 72.5mm, Shaft OD: 0.315in / 8mm
Dimension Replacement Unit:, OD: 2.854in / 72.5mm, Shaft OD: 0.315in / 8mm
Dimension Replacement Unit:, OD: 2.854in / 72.5mm, Shaft OD: 0.315in / 8mm
Dimension Replacement Unit:, OD: 2.854in / 72.5mm, Shaft OD: 0.315in / 8mm

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
MERCURY MARINE Engines - 2-Stroke Carb - By SN 225.0HP / 3.0L - SN 0D280813 Thru 0G760299 All 225.0HP, 3.0L
MERCURY MARINE Engines - 2-Stroke Carb - By SN 225.0HP Marathon - SN 0G245605 Thru 0G760299 All 225.0HP, 3.0L
MERCURY MARINE Engines - 2-Stroke Carb - By SN 225.0HP SeaPro - SN 0G245605 Thru 0G760299 All 225.0HP, 3.0L
MERCURY MARINE Models - By Engine Size 100ELPTO 2-Stroke 1988 100HP
MERCURY MARINE Models - By Engine Size 100ELPTO 2-Stroke 1989 100HP
MERCURY MARINE Models - By Engine Size 100ELXLPTO 2-Stroke 1988 100HP
MERCURY MARINE Models - By Engine Size 100ELXLPTO 2-Stroke 1989 100HP
MERCURY MARINE Models - By Engine Size 115ELPTO 2-Stroke 1989 115HP
MERCURY MARINE Models - By Engine Size 115EXLPTO 2-Stroke 1989 115HP
MERCURY MARINE Tilt AND Trim All Models 1993 Various
MERCURY MARINE Tilt AND Trim All Models 1994 Various
MERCURY MARINE Tilt AND Trim All Models 1995 Various
MERCURY ENGINE - OUTBOARD ALL MODELS 1993 NA
MERCURY ENGINE - OUTBOARD ALL MODELS 1994 NA
MERCURY ENGINE - OUTBOARD ALL MODELS 1995 NA

REPLACES THESE PART NUMBERS

API MARINE PT485NMK-3
ARCO MARINE 6279
ARROWHEAD TRM0011
EMP PARTS 4-6774
J&N Electrical Products 430-20067
LESTER 10820
MERCURY MARINE 828708A1, 878265A2, 878265A6
SIERRA MARINE 18-6774
WAI 10820N
