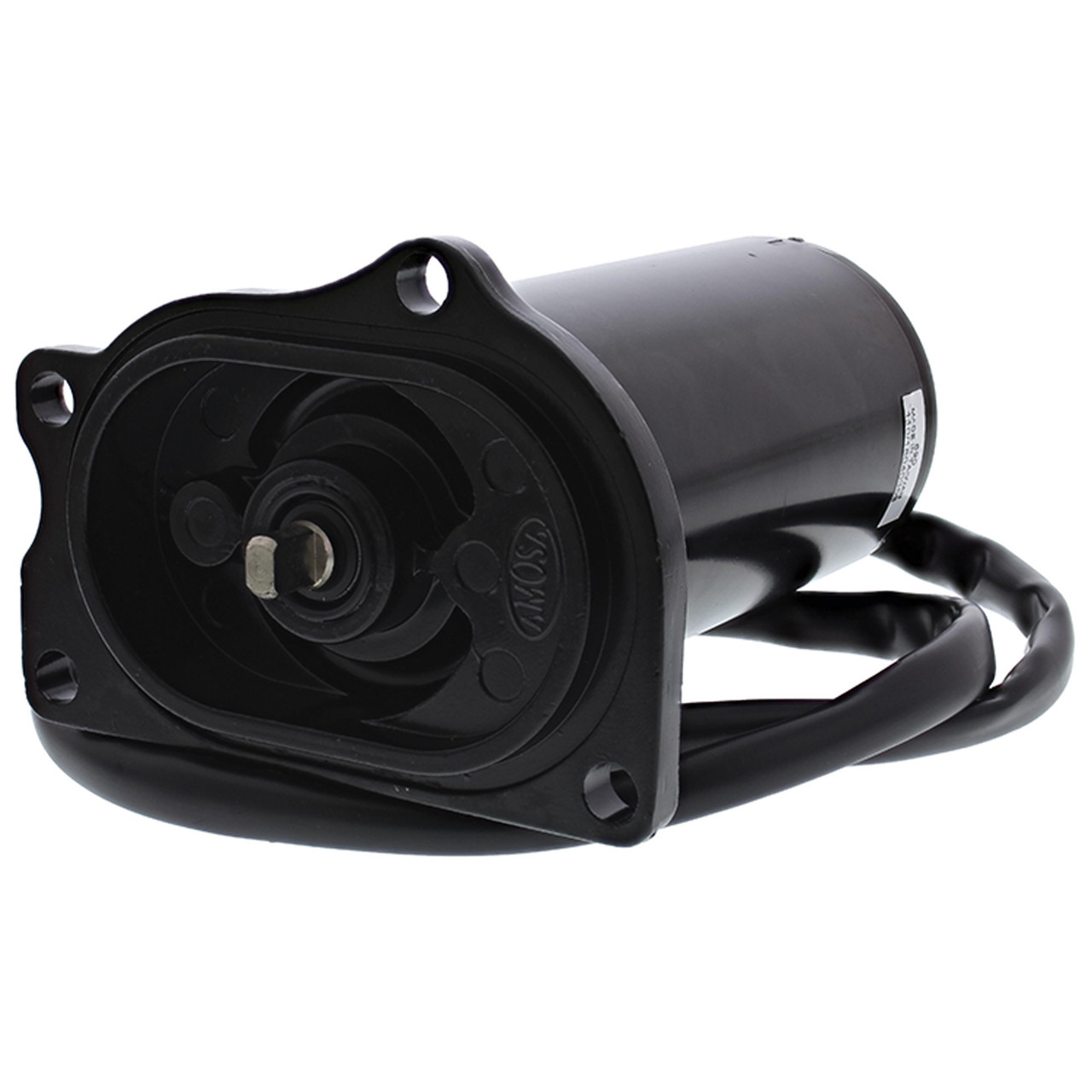

Tilt Trim Motor Mercury Force Outboard 25hp 50hp 25 50 hp 827675A1
Tilt Trim Motor Mercury Force Outboard 25hp 50hp 25 50 hp 827675A1  Tilt Trim Motor Mercury Force Outboard 25hp 50hp 25 50 hp 827675A1  Tilt Trim Motor Mercury Force Outboard 25hp 50hp 25 50 hp 827675A1

Tilt Trim Motor Mercury Force Outboard 25hp 50hp 25 50 hp 827675A1

  • Item #: 430-22034
  • Stock: In Stock

OVERVIEW

Tilt Trim Motors
Owners of Mercury motors appreciate the flawless and precise operation of Milton Auto Electric tilt trim motors that match OEM performance. Milton Auto Electric tilt trim motors smoothly raise and lower boat engines to the perfect angle for better on-the-water performance and fuel economy. They can also lift your engine upward to avoid damage when loading your boat on a trailer. Tilt trim motors make your days out on the water more enjoyable by giving you more control over how your boat performs. Our tilt trim motors are 12-volt direct current, reversing-style motors. We test our tilt trim motors on a professional test bench to ensure dependable performance.

Top 4 Reasons to Choose Milton Auto Electric Tilt Trim Motors

  • Marine grade that meets SAE J1171 and ISO8847
  • Designed to meet or exceed original (OEM) equipment specifications
  • High quality brushes, bushings and armatures for longer service life
  • Includes harness, relays and heavy-duty valves where applicable

How Tilt Trim Motors Work
When it’s time to install a tilt trim motor, you’ll notice one green and one blue wire on most models. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. Motors built for older-style systems may also have a black wire that serves as a ground. Newer style systems do not have this third wire.

Money-Saving Bottom Line Difference
Our tilt trim motors are typically priced lower than OEM counterparts. Because there is no middleman, we can offer these exceptional-quality tilt trim motors at low factory direct prices.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your motor meets your expectations.

Item Number: 430-22034

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Tilt & Trim Motor
Voltage 12
Rotation RE
Dimension Replacement Unit:, OD: 2.047in / 52mm, Shaft OD: 0.283in / 7.2mm
Fits Mercury / Mariner 25-50HP
Dimension Replacement Unit:, OD: 2.047in / 52mm, Shaft OD: 0.283in / 7.2mm
Dimension Replacement Unit:, OD: 2.047in / 52mm, Shaft OD: 0.283in / 7.2mm
Dimension Replacement Unit:, OD: 2.047in / 52mm, Shaft OD: 0.283in / 7.2mm
Dimension Replacement Unit:, OD: 2.047in / 52mm, Shaft OD: 0.283in / 7.2mm

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
FORCE Engines - Marine Outboard 40EL 1995 40HP
FORCE Engines - Marine Outboard 40EL 1996 40HP
FORCE Engines - Marine Outboard 40EL 1997 40HP
FORCE Engines - Marine Outboard 40EL 1998 40HP
FORCE Engines - Marine Outboard 40EL 1999 40HP
FORCE Engines - Marine Outboard 40ELPT 1995 40HP
FORCE Engines - Marine Outboard 40ELPT 1996 40HP
FORCE Engines - Marine Outboard 40ELPT 1997 40HP
FORCE Engines - Marine Outboard 40ELPT 1998 40HP
FORCE Engines - Marine Outboard 40ELPT 1999 40HP
FORCE Engines - Marine Outboard 50EL 1995 50HP
FORCE Engines - Marine Outboard 50EL 1996 50HP
FORCE Engines - Marine Outboard 50EL 1997 50HP
FORCE Engines - Marine Outboard 50EL 1998 50HP
FORCE Engines - Marine Outboard 50EL 1999 50HP
FORCE Engines - Marine Outboard 50ELPT 1995 50HP
FORCE Engines - Marine Outboard 50ELPT 1996 50HP
FORCE Engines - Marine Outboard 50ELPT 1997 50HP
FORCE Engines - Marine Outboard 50ELPT 1998 50HP
FORCE Engines - Marine Outboard 50ELPT 1999 50HP
MERCURY MARINE Engines - 2-Stroke Carb - By SN 30.0HP - SN 0G055314 Thru 0G760299 All 30.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 30.0HP - SN 0G760300 Thru 0T979999 All 30.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 30.0HP - SN 0T980000 Thru 0T999999 All 30.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 30.0HP - SN 1B000001 & Up All 30.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 30.0HP / Jet - SN 0G590000 Thru 0G760299 All 30.0HP, Jet
MERCURY MARINE Engines - 2-Stroke Carb - By SN 30.0HP / Jet - SN 0G760300 Thru 0T408999 All 30.0HP, Jet
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 2cyl - SN 0G055314 Thru 0G760299 All 40.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 2cyl - SN 0G760300 Thru 0T979999 All 40.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 2cyl - SN 0T980000 Thru 0T999999 All 40.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 2cyl - SN 1B000001 & Up All 40.0HP, 2 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 3cyl - SN 0G590000 Thru 0G760299 All 40.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 3cyl - SN 0G760300 Thru 0T979999 All 40.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 40.0HP / 3cyl - SN 0T980000 Thru 1B209735 All 40.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 50.0HP / 3cyl - SN 0G590000 Thru 0G760299 All 50.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 50.0HP / 3cyl - SN 0G760300 Thru 0T979999 All 50.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 50.0HP / 3cyl - SN 1B000001 & Up All 50.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 55.0HP / 3cyl - SN 0G590000 Thru 0G760299 All 55.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 55.0HP / 3cyl - SN 0G760300 Thru 0T979999 All 55.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 60.0HP / 3cyl - SN 0G590000 Thru 0G760299 All 60.0HP, 3 Cylinder
MERCURY MARINE Engines - 2-Stroke Carb - By SN 60.0HP / Bigfoot / 3cyl - SN 0G590000 Thru 0G760299 All 60.0HP, 3 Cylinder
MERCURY MARINE Engines - 4-Stroke OB - By SN 25.0HP - SN 0G590000 Thru 0G760299 All 25.0HP
MERCURY MARINE Engines - 4-Stroke OB - By SN 25.0HP - SN 0G760300 Thru 0T408999 All 25.0HP
MERCURY MARINE Engines - 4-Stroke OB - By SN 25.0HP - SN 0T409000 Thru 1B344298 All 25.0HP
MERCURY MARINE Engines - 4-Stroke OB - By SN 40.0HP - SN 0G231123 Thru 0G760299 All 40.0HP
MERCURY MARINE Engines - 4-Stroke OB - By SN 45.0HP Bodensee - SN 0G231123 Thru 0G760299 All 45.0HP
MERCURY MARINE Engines - 4-Stroke OB - By SN 50.0HP - SN 0G231123 Thru 0G760299 All 50.0HP
MERCURY MARINE Tilt AND Trim All Models All 25 HP
MERCURY MARINE Tilt AND Trim All Models All 50 HP
MERCURY ENGINE - OUTBOARD ALL MODELS ALL NA

REPLACES THESE PART NUMBERS

API MARINE PT498NM
ARCO MARINE 6255
ARROWHEAD TRM0048
EMP UnitS 4-6286
J&N Electrical Products 430-22034
LESTER 10828
Mercury MARINE 827675A1
PROTORQUE PH200-T002
SIERRA MARINE 18-6286
WAI 10828N
