Tilt Trim Motor Suzuki DF60-300 2001-Up 4 Stroke Outboard 38100-96J01
Tilt Trim Motor Suzuki DF60-300 2001-Up 4 Stroke Outboard 38100-96J01  Tilt Trim Motor Suzuki DF60-300 2001-Up 4 Stroke Outboard 38100-96J01  Tilt Trim Motor Suzuki DF60-300 2001-Up 4 Stroke Outboard 38100-96J01

Tilt Trim Motor Suzuki DF60-300 2001-Up 4 Stroke Outboard 38100-96J01

  • Item #: 430-22123
  • Stock: In Stock

OVERVIEW

Tilt Trim Motors for Johnson and Suzuki Outboard Engines
Owners of Johnson and Suzuki motors appreciate the flawless and precise operation of Milton Auto Electric tilt trim motors that match OEM performance. Milton Auto Electric tilt trim motors smoothly raise and lower boat engines to the perfect angle for better on-the-water performance and fuel economy. They can also lift your engine upward to avoid damage when loading your boat on a trailer. Tilt trim motors make your days out on the water more enjoyable by giving you more control over how your boat performs. Our tilt trim motors are 12-volt direct current, reversing-style motors. We test our tilt trim motors on a professional test bench to ensure dependable performance.

Top Reasons to Choose Milton Auto Electric Tilt Trim Motors

  • Marine grade that meets SAE J1171 and ISO8847
  • Recommended as a Suzuki tilt trim motor replacement
  • Meets fitment data for Suzuki marine parts
  • Quality aftermarket power tilt and trim units
  • Designed to meet or exceed original (OEM) equipment specifications
  • High quality brushes, bushings and armatures for longer service life
  • Includes harness, relays and heavy-duty valves where applicable

How Tilt Trim Motors Work

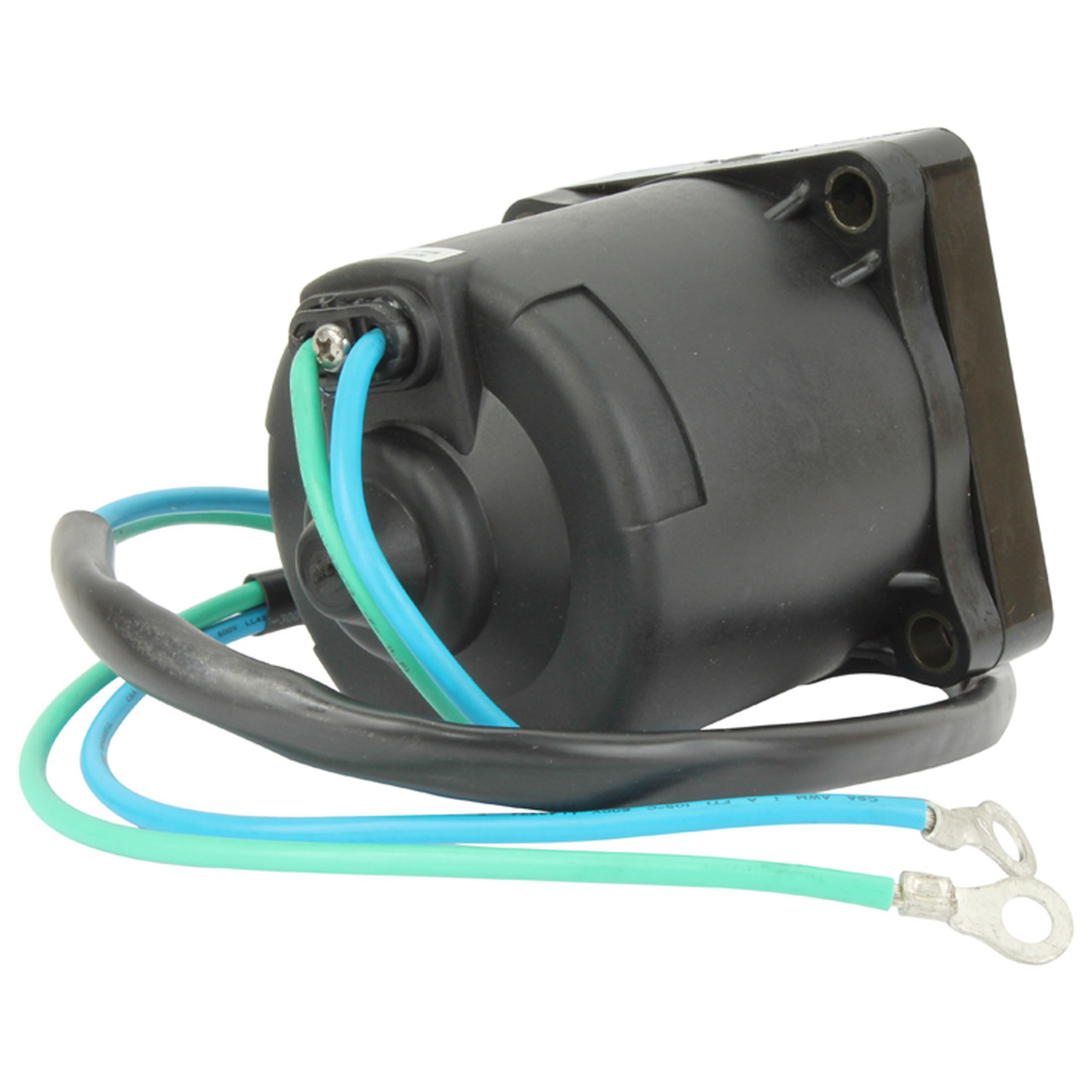

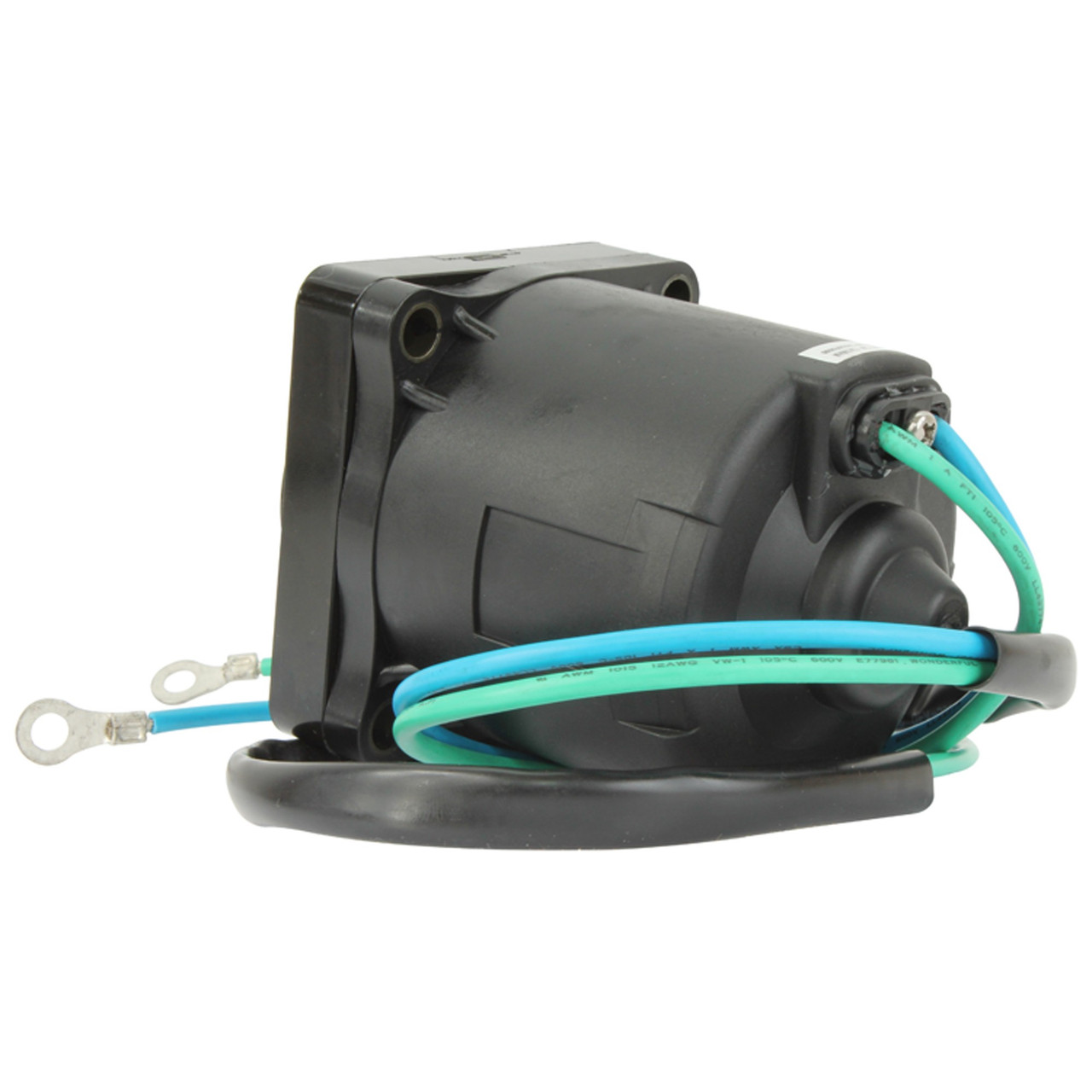

When it’s time to install a tilt trim motor, you’ll notice one green and one blue wire on most models. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. Motors built for older-style systems may also have a black wire that serves as a ground. Newer style systems do not have this third wire.

Money-Saving Bottom Line Difference
Our tilt trim motors are typically priced lower than OEM counterparts. Because there is no middleman, we can offer these exceptional-quality tilt trim motors at low factory direct prices.

The Milton Auto Electric Advantage - 1-Year Warranty
Milton Auto Electric delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your motor meets your expectations.

Item Number: 430-22123

100% Brand New Aftermarket Part From Milton Auto Electric

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Tilt & Trim Motor
Voltage 12
Rotation RE

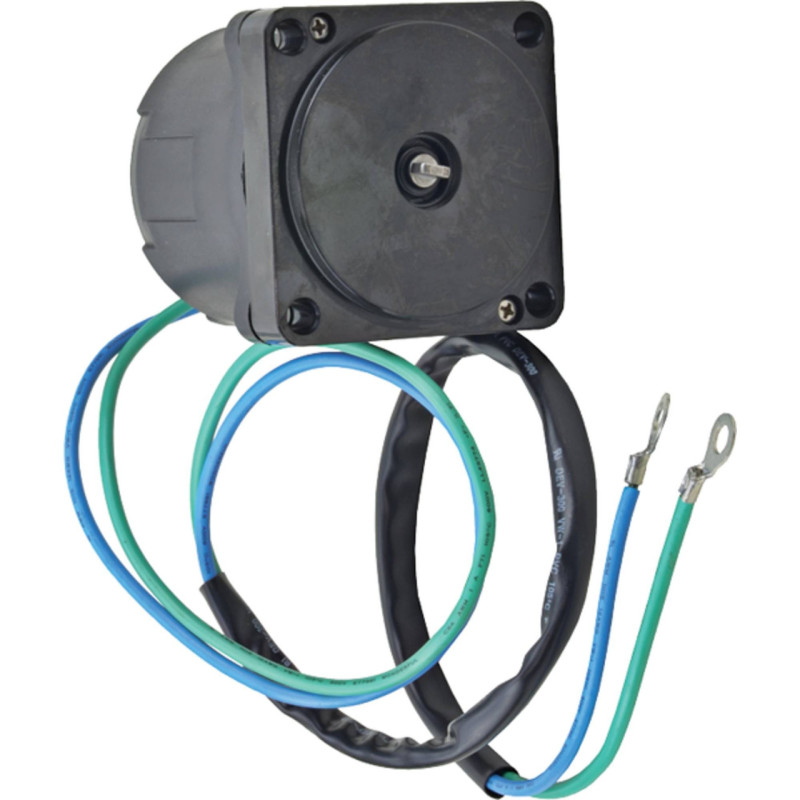

Dimension Replacement Unit:, OD: 3.091in / 78.5mm, Shaft OD: 0.315in / 8mm
Fits SUZUKI 60HP, 70HP, 90HP, 115HP, 140HP Outboard Motors 2001-03
Dimension Replacement Unit:, OD: 3.091in / 78.5mm, Shaft OD: 0.315in / 8mm
Dimension Replacement Unit:, OD: 3.091in / 78.5mm, Shaft OD: 0.315in / 8mm
Dimension Replacement Unit:, OD: 3.091in / 78.5mm, Shaft OD: 0.315in / 8mm
Dimension Replacement Unit:, OD: 3.091in / 78.5mm, Shaft OD: 0.315in / 8mm

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
EVINRUDE Engines - Marine Outboard E70PL 2001 70HP
JOHNSON Engines - Marine Outboard BJ115L4 2003 115HP
JOHNSON Engines - Marine Outboard BJ115X4 2003 115HP
JOHNSON Engines - Marine Outboard BJ60PL4 2003 60HP
JOHNSON Engines - Marine Outboard BJ60PL4 2004 60HP
JOHNSON Engines - Marine Outboard BJ60PL4 2005 60HP
JOHNSON Engines - Marine Outboard BJ70PL4 2003 70HP
JOHNSON Engines - Marine Outboard BJ70PL4 2004 70HP
JOHNSON Engines - Marine Outboard BJ70PL4 2005 70HP
JOHNSON Engines - Marine Outboard BJ90PL4 2003 90HP
JOHNSON Engines - Marine Outboard BJ90PX4 2003 90HP
JOHNSON Engines - Marine Outboard J115PL4 2003 115HP
JOHNSON Engines - Marine Outboard J115PX4 2003 115HP
JOHNSON Engines - Marine Outboard J140CX4 2003 140HP
JOHNSON Engines - Marine Outboard J140PL4 2003 140HP
JOHNSON Engines - Marine Outboard J140PX4 2003 140HP
JOHNSON Engines - Marine Outboard J60PL4 2002 60HP
JOHNSON Engines - Marine Outboard J60PL4 2003 60HP
JOHNSON Engines - Marine Outboard J60PL4 2004 60HP
JOHNSON Engines - Marine Outboard J60PL4 2005 60HP
JOHNSON Engines - Marine Outboard J70PL4 2002 70HP
JOHNSON Engines - Marine Outboard J70PL4 2003 70HP
JOHNSON Engines - Marine Outboard J70PL4 2004 70HP
JOHNSON Engines - Marine Outboard J70PL4 2005 70HP
JOHNSON Engines - Marine Outboard J90PL4 2003 90HP
JOHNSON Engines - Marine Outboard J90PX4 2003 90HP
SUZUKI Engines - Marine Outboard DF115TL 2001 118.9ci - 115HP
SUZUKI Engines - Marine Outboard DF115TL 2002 118.9ci - 115HP
SUZUKI Engines - Marine Outboard DF115TL 2003 118.9ci - 115HP
SUZUKI Engines - Marine Outboard DF115TX 2001 118.9ci - 115HP
SUZUKI Engines - Marine Outboard DF115TX 2002 118.9ci - 115HP
SUZUKI Engines - Marine Outboard DF115TX 2003 118.9ci - 115HP
SUZUKI Engines - Marine Outboard DF140TL 2002 124.7ci - 140HP
SUZUKI Engines - Marine Outboard DF140TL 2003 124.7ci - 140HP
SUZUKI Engines - Marine Outboard DF140TX 2002 124.7ci - 140HP
SUZUKI Engines - Marine Outboard DF140TX 2003 124.7ci - 140HP
SUZUKI Engines - Marine Outboard DF140TXZ 2002 124.7ci - 140HP
SUZUKI Engines - Marine Outboard DF140TXZ 2003 124.7ci - 140HP
SUZUKI Engines - Marine Outboard DF60TL 2001 79.2ci - 60HP
SUZUKI Engines - Marine Outboard DF60TL 2002 79.2ci - 60HP
SUZUKI Engines - Marine Outboard DF60TL 2003 79.2ci - 60HP
SUZUKI Engines - Marine Outboard DF70TL 2001 79.2ci - 70HP
SUZUKI Engines - Marine Outboard DF70TL 2002 79.2ci - 70HP
SUZUKI Engines - Marine Outboard DF70TL 2003 79.2ci - 70HP
SUZUKI Engines - Marine Outboard DF90TL 2001 118.9ci - 90HP
SUZUKI Engines - Marine Outboard DF90TL 2002 118.9ci - 90HP
SUZUKI Engines - Marine Outboard DF90TL 2003 118.9ci - 90HP
SUZUKI Engines - Marine Outboard DF90TX 2001 118.9ci - 90HP
SUZUKI Engines - Marine Outboard DF90TX 2002 118.9ci - 90HP
SUZUKI Engines - Marine Outboard DF90TX 2003 118.9ci - 90HP
EVINRUDE ENGINE - OUTBOARD E70PL 2001 NA
SUZUKI ENGINE - OUTBOARD DF115TL 2001 NA
SUZUKI ENGINE - OUTBOARD DF115TL 2002 NA
SUZUKI ENGINE - OUTBOARD DF115TL 2003 NA
SUZUKI ENGINE - OUTBOARD DF115TX 2001 NA
SUZUKI ENGINE - OUTBOARD DF115TX 2002 NA
SUZUKI ENGINE - OUTBOARD DF115TX 2003 NA
SUZUKI ENGINE - OUTBOARD DF140TL 2002 NA
SUZUKI ENGINE - OUTBOARD DF140TL 2003 NA
SUZUKI ENGINE - OUTBOARD DF140TX 2002 NA
SUZUKI ENGINE - OUTBOARD DF140TX 2003 NA
SUZUKI ENGINE - OUTBOARD DF140TXZ 2002 NA
SUZUKI ENGINE - OUTBOARD DF140TXZ 2003 NA
SUZUKI ENGINE - OUTBOARD DF150T 4-STROKE 2006 NA
SUZUKI ENGINE - OUTBOARD DF60TL 2001 NA
SUZUKI ENGINE - OUTBOARD DF60TL 2002 NA
SUZUKI ENGINE - OUTBOARD DF60TL 2003 NA
SUZUKI ENGINE - OUTBOARD DF70TL 2001 NA
SUZUKI ENGINE - OUTBOARD DF70TL 2002 NA
SUZUKI ENGINE - OUTBOARD DF70TL 2003 NA
SUZUKI ENGINE - OUTBOARD DF90TL 2001 NA
SUZUKI ENGINE - OUTBOARD DF90TL 2002 NA
SUZUKI ENGINE - OUTBOARD DF90TL 2003 NA
SUZUKI ENGINE - OUTBOARD DF90TX 2001 NA
SUZUKI ENGINE - OUTBOARD DF90TX 2002 NA
SUZUKI ENGINE - OUTBOARD DF90TX 2003 NA
JOHNSON ENGINE - OUTBOARD BJ115L4 2003 NA
JOHNSON ENGINE - OUTBOARD BJ115X4 2003 NA
JOHNSON ENGINE - OUTBOARD BJ60PL4 2003 NA
JOHNSON ENGINE - OUTBOARD BJ60PL4 2004 NA
JOHNSON ENGINE - OUTBOARD BJ60PL4 2005 NA
JOHNSON ENGINE - OUTBOARD BJ70PL4 2003 NA
JOHNSON ENGINE - OUTBOARD BJ70PL4 2004 NA
JOHNSON ENGINE - OUTBOARD BJ70PL4 2005 NA
JOHNSON ENGINE - OUTBOARD BJ90PL4 2003 NA
JOHNSON ENGINE - OUTBOARD BJ90PX4 2003 NA
JOHNSON ENGINE - OUTBOARD J115PL4 2003 NA
JOHNSON ENGINE - OUTBOARD J115PX4 2003 NA
JOHNSON ENGINE - OUTBOARD J140CX4 2003 NA
JOHNSON ENGINE - OUTBOARD J140PL4 2003 NA
JOHNSON ENGINE - OUTBOARD J140PX4 2003 NA
JOHNSON ENGINE - OUTBOARD J60PL4 2002 NA
JOHNSON ENGINE - OUTBOARD J60PL4 2003 NA
JOHNSON ENGINE - OUTBOARD J60PL4 2004 NA
JOHNSON ENGINE - OUTBOARD J60PL4 2005 NA
JOHNSON ENGINE - OUTBOARD J70PL4 2002 NA
JOHNSON ENGINE - OUTBOARD J70PL4 2003 NA
JOHNSON ENGINE - OUTBOARD J70PL4 2004 NA
JOHNSON ENGINE - OUTBOARD J70PL4 2005 NA
JOHNSON ENGINE - OUTBOARD J90PL4 2003 NA
JOHNSON ENGINE - OUTBOARD J90PX4 2003 NA

REPLACES THESE PART NUMBERS

API MARINE PT653NM
ARROWHEAD TRM0095
J&N Electrical Products 430-22123
LESTER 10888
OMC 5032636, 5033838, 5033925, 5034525, 5034526
SUZUKI 38100-92J00, 38100-92J01, 38100-92J02, 38100-92J03
